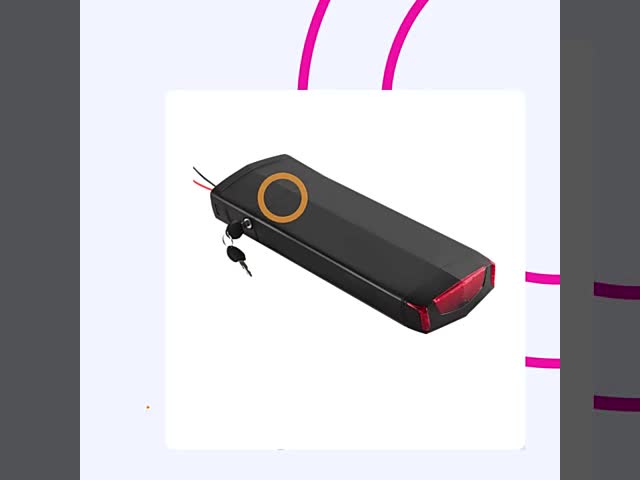

18650 10S3P Electric Scooter Battery Pack 36V 7.8Ah / E Scooter External Battery

18650 10S3P Electric Scooter Battery Pack 36V 7.8Ah / E Scooter External Battery

Ask Latest Price
Brand Name :RYDBATT
Model Number :RYD-10S3P
Certification :CE ROSH UN38.3 MSDS
Place of Origin :CHINA, guangdong
MOQ :500
Price :Negotiated The Price
Payment Terms :D/P, T/T,
Supply Ability :800PCS /Day
Delivery Time :30-45 work days
Packaging Details :Customer requirements
Type :Li-Ion,Lithium Battery
Cycle life :>500 Times
Application :Electric Bike
Capacity :10 - 20Ah or customized
Voltage :36v
Charger :42V 2A
Oem :Availiable,Acceptable,Accept OEM and ODM
Contact Now

Add to Cart

Shipping
lt's easy to get a shipping quote! Just click the button below and complete the short form.
Get Shipping Quote
View Product Description

RYDBATT Li-18650-10S3P Li-ion Battery Pack-36V 7.8Ah-PCM 36V For Electric Scooter Smart Battery

1 Product Specification

No.

content

Testing method

Remark

1

Charge cut-off voltage

42V

2

Discharge cut-off voltage

27.5V

3

Standard charge

Under the condition of the ambient temperature of 25 ± 2 ℃ , Charge the battery at constant current of 0.2C to reach 42V. Then charge the battery at constant 42V voltage until the charging current decreasing to 0.02C.

4

Standard discharge

After the standard charging , rest for 1 hour then discharge to 27.5V@0.2C.

5

Shipments voltage

35-36.5V ≤30 %

6

Maximum Charge Current

3A

7

Maximum continuous working current

≤20A

8

Rated capacity

Typical capacity:10Ah

Minimum capacity:10Ah-5%

standard discharge after standard charge

9

Operation temperature range 10~45℃

60±25%R.H

-20~60℃

10

Storage temperature

≤1 month: -20 ~ 45℃

60±25%R.H

Best 10~25℃ for long-time storage

≤3 months: -10 ~ 30℃

≤1 year: 0 ~ 30℃

11

Impedance

<200mΩ

12

Weight

Approx:2925 g

Product Description:

* With plastic shell.secure and nice in constitution.

* Accurate electricity display. (can be selected )

* Enclosure IPX5 waterproof. .

* With lock anti-theft, pull-up structure can be removed.

* The production environment conforms to international standards.

About company:

* Ryder has 15 years experience of battery packs. Our customers are from all over the world.

* Develop products according to customer requirements or product orientation.

* The automated battery assembly line can process 7K-10K cells every day to guarantee fast delivery for the orders.

* Offer 200 test points for the battery within 60V 10A and 32 test points for the battery within 100V 20A.

* SAP & MES dual system to coordinate daily production.

Delivery Time:

- Material Preparation Time: 7-15 days (or inventory)

- Production & Assembly Time 3-10 days

- Testing & Packaging Time: 2-10 days

- Total Delivery Time: 30-45days

- The faster delivery could be negotiable.

Factory photo:

18650 10S3P Electric Scooter Battery Pack 36V 7.8Ah / E Scooter External Battery

Contact with our sales team for your OEM and ODM order.

OEM/ODM Service:

If you want to display your own brand logo in products, bags, labels or anywhere. Or you need to develop battery packs according to your product orientation. Our OEM and ODM services are ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet

Ryder Electronics established in Shenzhen on July 18, 2005, mainly in the business of battery packs. In 2009 the company passed ISO9001 and improved the product quality standard to fulfill the high-end requirements from our customers.

In 2012, Ryder Electronics moved to a new facility and expend the production capacity, the Productivity improved nearly 10 times than before.

In 2013, Ryder Electronics imported ERP (SAP) system to supervise order execution process.

In 2017, Ryder Electronics expanded the SMT, imported high-speed patch machine from Germany.

Until now the factory grows into a modern enterprise which integrated injection molding, PCB designing, SMT and battery pack assembling services.

In 2018 the company passed ISO14001certification, introduced automated battery production line to further improve the production quality and capacity.
